Technical Introduction VPS Technical
Technical Introduction

VPS Technical

Features & Benefits

01
Low Operating Cost
02
Oil & Water Free
03
Solid Handing Capability
04
Simple Design & Long Pump Life
05
Low Vibration & Low Noise Level
06
Clean Operation
07
High Volume Efficiency
08
Corrosion Resistant Design
09
Mechanical Seal
10
Booster/Pump System Available

Features

Oil & Water Free Operating
  • The vacuum pump is designed to operate completely dry, without the use of water or oil within the pump. This eliminates wastewater and waste oil disposal costs, making it an environmentally friendly solution ideally suited for handling chemical and corrosive process gases.
Corrosion Resistant Design
  • All wetted parts and gas-contacting components are coated with highly corrosion-resistant fluoropolymer materials (PFA/PTFE), providing superior protection against corrosive process gases and extending the service life of the equipment.
Durable Mechanical Design-Low Vibration & Low noise Level
  • The non-contact design between the screw and the casing eliminates metal-to-metal contact, enabling high-speed operation that significantly reduces vibration and noise. This design minimizes screw wear, extends pump service life, and ensures long-term operational reliability.
Low Ultimate Pressure & High Volume Efficiency
  • The dry screw vacuum pump provides continuous and stable operation throughout the full pressure range, from atmospheric pressure to high vacuum conditions. As a standalone pump, it is capable of achieving an ultimate pressure of 1 × 10⁻² Torr, offering excellent pumping performance and energy efficiency across a wide range of applications.

Major Application

Fiber Industries
Wool, Nylon, Polyester, etc
Distillation
Pharm. : Vitamin A, B, E, K, M, P, etc
Food : Food Additive, etc
Vacuum Forming
Plastic, Tire, all Case, etc
Vacuum Concentration
Food : Fruit juice, Meet juice, etc
Chemical : Glycerin, Electrolyte, etc
Etc
Cutting Tools, Semiconductor Solvent Recovery, etc
Vacuum Drying
Food : powder, Meet, fish, Fruit, etc
Pharm. : Blood seurm, BCG, etc
Chemical : Poly ester, Nylon
Vacuum Degasing(Casting)
Steel, Copper, Special Material, etc
Vacuum Impregnation
Electric : Trans, Cable, Motor, Condenser, etc
Civil & Const. : New Material, Special material, etc

Dry Screw Vacuum Pump

Features of Dry Vacuum Pumps
  • Completely Dry Operation-No water or oil is used inside the vacuum pump.
  • Eco-Friendly Design – No wastewater or waste oil is generated, eliminating disposal costs and minimizing environmental impact.
  • Designed to efficiently handle large amounts of moisture, condensable vapors, and a wide range of chemical process gases.
  • The single vacuum is excellent, allowing continuous operation in all pressure regions from atmospheric pressure, and can be applied in a wide range of 1x10-2 Torr alone.
  • The pump delivers superior performance compared to liquid ring and oil-sealed rotary vacuum pumps, with pumping capacity remaining virtually unaffected by changes in vacuum level.
  • All wetted parts in contact with chemical gases are specially coated for superior corrosion resistance.
  • Heavy-duty castings prevent any deformation under high vacuum levels.
  • The use of precision-machined timing gears minimizes noise and ensures smooth, stable operation.
Standard and Optional Features for corrosion protection
  • Teflon Coating(PFA, PTFE)-Standard Coating
  • Nickel Plating, Ceramic Coating-Option
  • Stainless Steel(SUS 304, 316, 316L)-Option

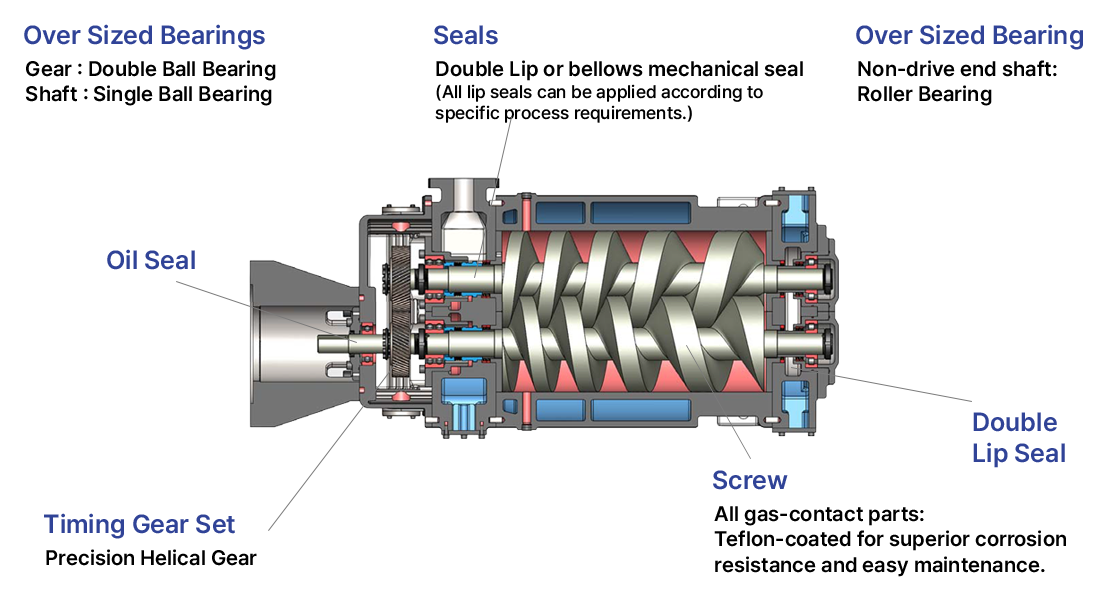

Product Features

Standard Water Cooled End Plates, Casing
