VPS-P Series

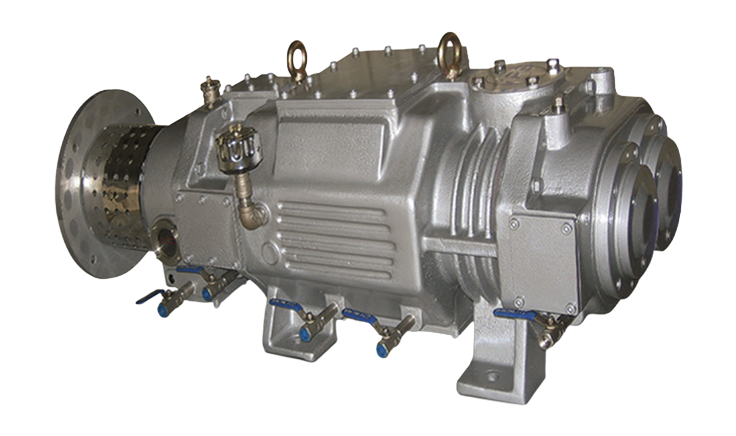

VPS-P Medium Capacity
Screw type Dry Vacuum pumps are widely employed worldwide in chemical, Petro-chemical, food processing, plastics, vacuum furnace, semiconductor as well as many other applications in general industries. Screw type Dry Vacuum Pumps are designed for systems and applications.
Screw Rotor & Single Stage
01
Higher Volume Efficiency
02
Higher Compression Ratio
03
Improve Pumping Speed
04
Lower Cost of Ownership
Specification
| VPS-P150 | VPS-P300 | VPS-P400 | VPS-P800 | ||
|---|---|---|---|---|---|
| Nominal Displacement (50/60Hz) |
M3/Hr | 120 / 150 | 205 / 300 | 330 / 400 | 680 / 800 |
| CFM | 70.6 / 88.3 | 147.1 / 176.5 | 194.2 / 235.4 | 400.2 / 470.8 | |
| ℓ/min | 2000 / 2500 | 4167 / 5000 | 5500 / 6667 | 11333 / 13333 | |
| Ultimate Pressure (50/60Hz) |
mbar | 0.27 / 0.13 | 0.13 / 0.07 | 0.04 / 0.013 | 0.04 / 0.013 |
| Torr | 0.2 / 0.1 | 0.1 / 0.05 | 0.03 / 0.01 | 0.03 / 0.01 | |
| Pa | 27 / 13.3 | 13.3 / 6.7 | 4 / 1.3 | 4 / 1.3 | |
| Power (50/60Hz) | Kw | 5.5 | 7.5 / 11 | 11 / 15 | 18.5 / 22 |
| Hp | 7.5 | 10 / 15 | 15 /20 | 25 / 30 | |
| Rotation (RPM) 50/60Hz | 2900 / 3450 | ||||
| Port Size (A) | Suction | 40 | 50 | 65 | 100 |
| Discharge | 40 | 40 | 50 | 65 | |
| Gear Oil (L) | 1.3 | 1.6 | 2 | 4 | |
| Cooling Water | ℓ/min | 3 | 5 | 7 | 10 |
| gal/min | 0.8 | 1.32 | 1.85 | 2.64 | |
| Weight (Pump only) | 220Kg | 320Kg | 410Kg | 630Kg | |

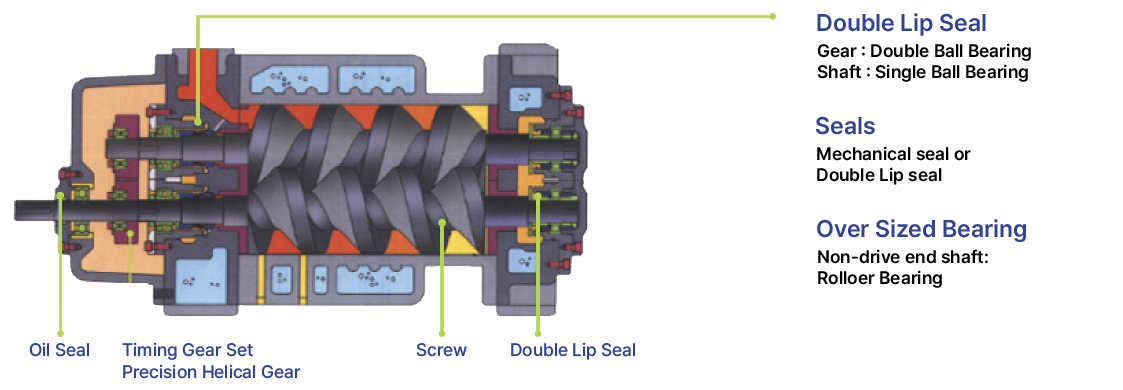

Standard Water Cooled End Plates, Casing
VPS-P Large Capacity
Specification
| VPS-P1500 | VPS-P2700 | ||||
|---|---|---|---|---|---|
| Nominal Displacement (50/60Hz) |
M3/Hr | 1250 / 1500 | 2250 / 2700 | ||
| CFM | 735 / 882.8 | 1324 / 1589 | |||
| ℓ/min | 20833 / 25000 | 37500 / 45000 | |||
| Ultimate Pressure (50/60Hz) |
mbar | 0.13 / 0.07 | 0.13 / 0.07 | ||
| Torr | 0.1 / 0.05 | 0.1 / 0.05 | |||
| Pa | 13.3 / 6.7 | 13.3 / 6.7 | |||
| Power (50/60Hz) | Kw | 37 | 55 | ||
| Hp | 50 | 75 | |||
| Rotation (RPM) 50/60Hz | 1450 / 1750 | ||||
| Cooling Water | ℓ/min | 20 | 28 | ||
| gal/min | 5.3 | 7.4 | |||
| Weight (Pump only) | 1350Kg | 1750Kg | |||
Performance Curve / Dimension
VPS-P Medium Capacity
01
VPS-P150
02
VPS-P300
03

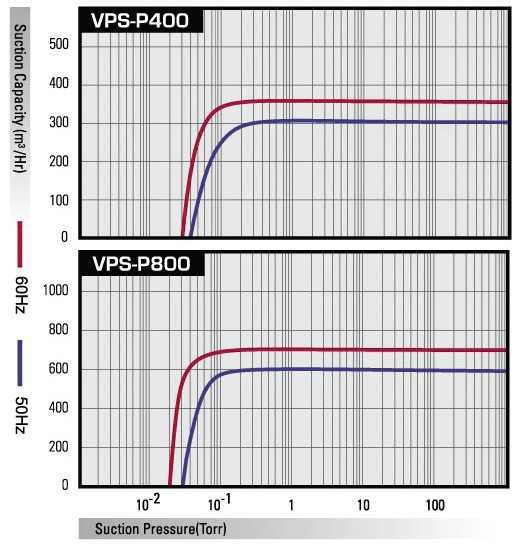

VPS-P400
04
VPS-P800

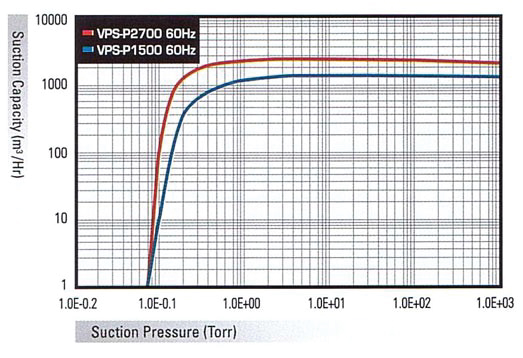

VPS-P Large Capacity
01
VPS-P2700
02
VPS-P1500

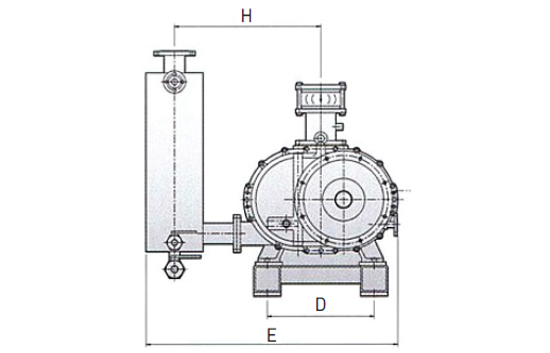

Specification

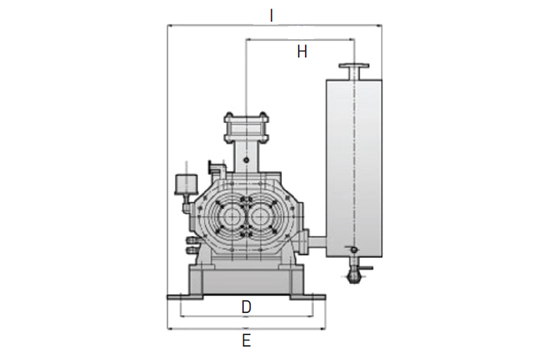

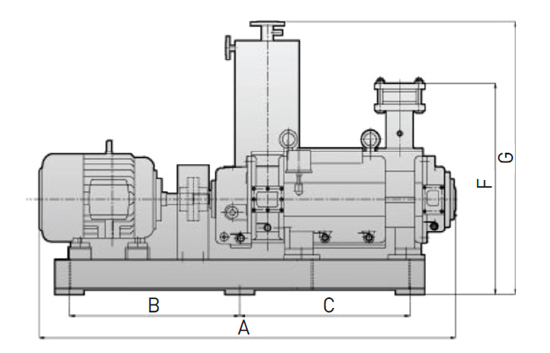

| Model No. | A | B | C | D | E | F | G | H | I | Remark |
|---|---|---|---|---|---|---|---|---|---|---|
| VPS-P150 | 1070 | - | 600 | 482 | 602 | 722 | 895 | 380 | 789 | C-FLANGE TYPE |
| VPS-P300 | 1305 | - | 750 | 538 | 658 | 766 | 895 | 420 | 857 | C-FLANGE TYPE |
| VPS-P400 | 1573 | 620 | 620 | 560 | 580 | 789 | 992 | 545 | 885 | |
| VPS-P800 | 1773 | 715 | 715 | 640 | 760 | 880 | 1137 | 654 | 1033 | |
| VPS-P1500 | 1450 | 575 | 2110 | 480 | 1210 | 1035 | 1340 | 675 | ||
| VPS-P2700 | 1500 | 640 | 2267 | 600 | 1410 | 1180 | 1370 | 820 |
