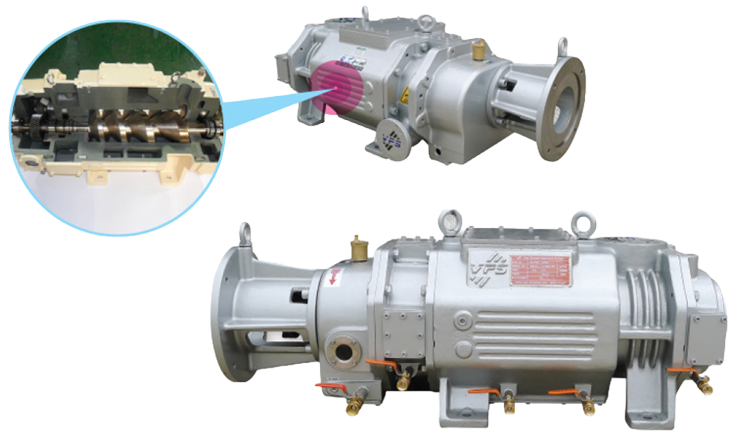

VPS-C Series Dry Vacuum Pump

Characteristics of

Applid variable pitch screw
  • Prevention of coating damage by pump temperature rise
  • 30% reduction in power consumption by energy-saving design
Vacuum degree improvement
  • Reaches the maximum vacuum degree 0.0075torr(1Pa)
  • Increase pumping volume from high vacuum
  • Maintaining stable volume from atmospheric pressure up to 1torr(133Pa)
Spiral coolant jacket
  • Excellent cooling efficiency of the spiral jacket
  • Low operating temperature
  • Controlling temperature inside the pump with a small amount of coolant
Smooth discharge structure
  • Short gas path through the pump makes quick gas discharge
  • Smooth condensate draining within the pump
  • Excellent liquid handling ability
IEC Flange (NEMA Optional)
  • Mostly C-flange design simplifies mounting reduce noise level and eliminate shaft alignment
  • Rib enhancement for deformation and vibration prevention

Technical Data

Specification

Specification VPS-C200 VPS-C350 VPS-C450 VPS-C650 VPS-C900 VPS-C1500 VPS-C1800 VPS-C2700
Nominal
Displacment		 M3/Hr 160 / 200 280 / 350 360 / 450 540 / 650 750 / 900 1250 / 1500 1500 / 1800 2250 / 2700
CFM 94.2 / 117.7 164.8 / 206 211.9 / 264.8 317.9 / 382.6 441.4 / 529.7 735 / 882.8 882.8 / 1095.4 1324 / 1589
ℓ/min 2667 / 3333 4667 / 5833 6000 / 7500 9000 / 10800 12500 / 15000 20833 / 25000 25000 / 30000 37500 / 45000
Ultimate
Pressure		 mbar 0.04 / 0.013 0.013 / 0.01 0.013 / 0.01 0.013 / 0.01 0.013 / 0.01 0.013 / 0.07 0.013 / 0.07 0.013 / 0.07
torr 0.03 / 0.01 0.01 / 0.0075 0.01 / 0.0075 0.01 / 0.0075 0.01 / 0.0075 0.1 / 0.05 0.1 / 0.05 0.1 / 0.05
Pa 4.0 / 1.33 1.33 / 1.0 1.33 / 1.0 1.33 / 1.0 1.33 / 1.0 1.33 / 6.7 1.33 / 6.7 1.33 / 6.7
Power
(50/60Hz)(kW)		 5.5 7.5 11.0 15.0 18.5 37.0 37.0 55.0
Port
Size		 Suction(A) 40 50 65 80 100 125 125 150
Discharge
(A)		 40 40 50 65 65 80 80 100
Cooling Water
(L/Min)		 5 10 10 15 15 20 20 28
Gear Oil Front
(L)		 1.0 1.0 1.2 2.0 2.0 5.3 5.3 7.4
Rotation(50/60Hz)
(RPM)		 2900 / 3450 1450 / 1750
Weight Pump Only
(kg)		 220 320 410 550 630 1350 1400 1750

Dimensions & Curve

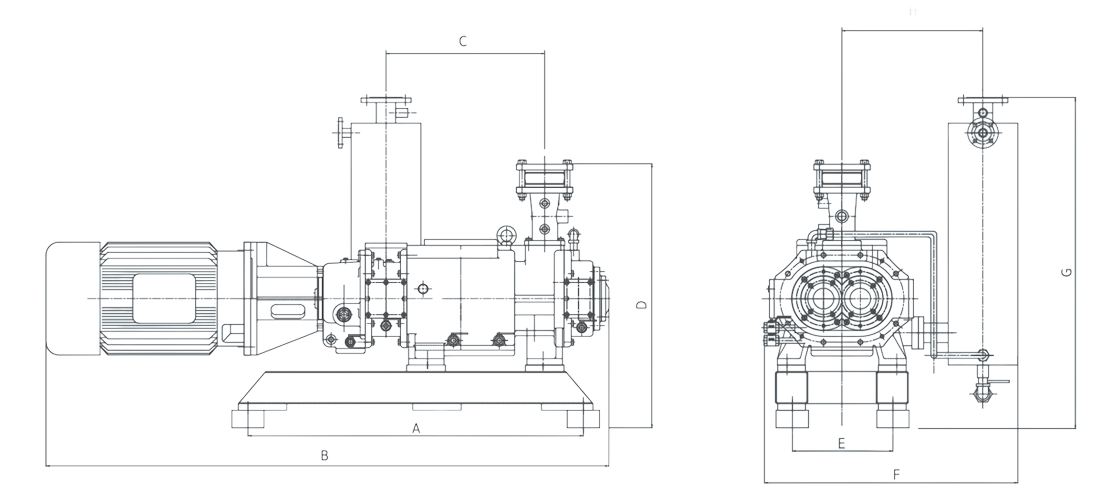

Dimensions

Model A B C D E F G H Remark
VPS-C200 740 1270 357 696 260 654 908 350
VPS-C350 940 1400 443 795 282 769 927 420
VPS-C450 1040 1745 492 819 312 786 1027 437
VPS-650 1240 1792 55.5 912.5 402 939 1163 520
VPS-C900 1240 1905 555.5 912.5 402 939 1163 520
Model A B C D E F G H Remark
VPS-C1500 1755 2210 761.6 825.5 760 1282 1470 675
VPS-C1800 1750 2059 647.8 969 740 1185 1393 588
VPS-C2700 1700 2398 871 1028 600 1412 1500 818

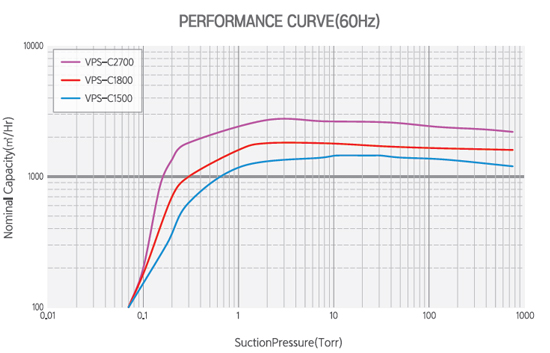

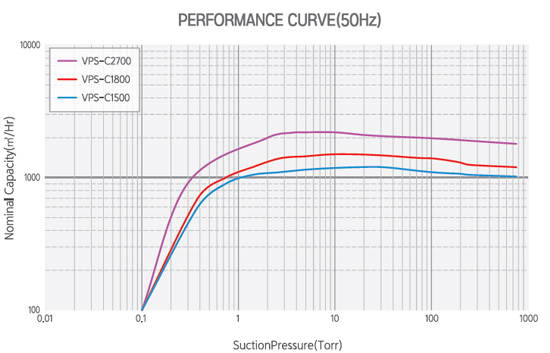

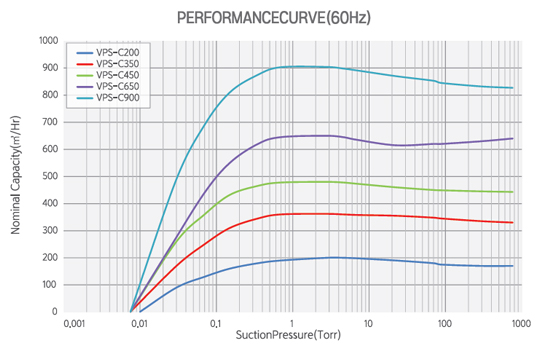

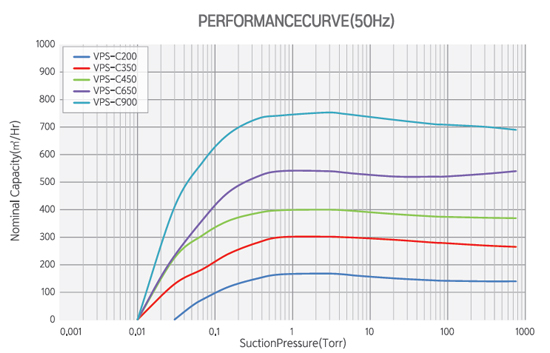

Performance Curve
